Introduction

• Why?
  helped me, maybe helps others
• For Who?
  Mostly Beginners
• What?
  C++ on Bare Metal & some CMake

my work

Disclaimer

• Ideas are no army swiss knife
• specific solutions of my worklife
• therefore tools of this time & knowledge

easy, obvious start

Why const?

• more readable Code
• helps compiler to optimize (smaller/ faster)
• prevents bugs
• feature exists since "forever"
  (no Excuse for not using it 😉)

more readable/less potential bugs

void super_serious_function(const int & input_value) {
// input_value++;  // can't be changed
// [...] big magic happens here [...]
std::cout << input_value;
// [...] more unicorn code [...]
}

helping the compiler

const std::array values = {1,2,3,4,5,6,7,8,9,10,12,13,14,15};

int main() {
    std::cout << values[4];
    return 0;
}

More detailed Talks

• CppCon 2018: Kate Gregory
  - Simplicity: Not Just For Beginners
  Highlight: Const all the things [47:38 - 51:22]
• CppCon 2016: Jason Turner
  - Rich Code for Tiny Computers: A Simple Commodore 64 Game in C++17
  Highlight: "add const" [26:56 - 28:23]

Better Optimization?

• constexpr!
• Variable evaluation at compiletime
• Function evaluation at compiletime
  IF POSSIBLE
• since C++11 for variables and 1 line Functions
• since C++14 for functions with more lines
  often possible to add "constexpr" to function

More detailed Talks

• Ben Deane & Jason Turner
  - constexpr ALL the Things!

One Step further?

• consteval!
• Function MUST evaluate at compile
• only for functions!
• "added" in C++20
• gives guarantees for our code

summary

Configurations

• Save Configurations in Files
• "One File for all" or "One File per Configuration"?
• it depends! For me:
• One File for all:
  if Configurations are small
• One File per Configuration:
  if Configurations are long

Where could it be used?

• Device-Address (I2C, IP[static or dynamic?])
• Server-Address (Gateway? static IP?)
• Devboard, Prototype, Final HW-Revision? (LED-Pins?)
• Branding?
• Watchdogtimer?

Example

struct first {
    constexpr static int device_ram_size = 1; };

struct middle {
    constexpr static int device_ram_size = 21; };

struct last {
    constexpr static int device_ram_size = 42; };

int main() {
    using this_config = last;
    std::cout << this_config::device_ram_size ;
    return 0;
};

Example

struct first {
    using connection = GW_t; };

struct last {
    using connection = IP_t<192,168,0,8>; };

Story of a Sensor

• Connection
• Different Hardware
• Easy added User

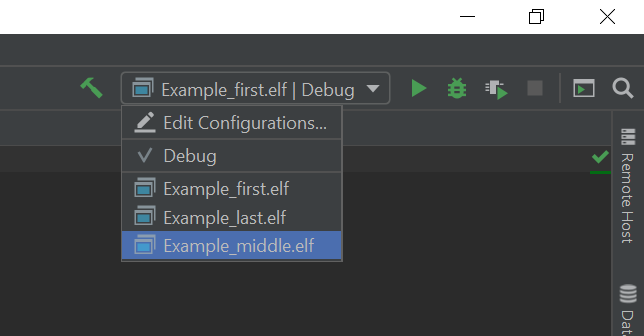

Example CMAKE

SET( Environment_configs "first" "last" "middle")

# for each device/config-version create own target
foreach( current_Environment ${Environment_configs} )
    # create this specific target
    add_executable(Example_${current_Environment}.elf
                    main.cpp)
    # every target gets own definevalue
    target_compile_definitions(Example_${current_Environment}.elf
                    PUBLIC CONFIG_DEFINE=${current_Environment})
endforeach()

And why all this?

Policy Based Class Design

Policy Based Class Design

• Book from 2001 (18 years!)
• Implementations of Behaviour/Values
• changed C++ (std::container accept allocators!)
• very good for combining behaviours!
• combining through misusing of typesystem/templates (TMP!)

Where useful?

• reading ADC? write a function/helperclass!
• What ADC? ADC 0, 1 or 2? (specific SFRs!)
• how do we copy Data? Interruptroutine or DMA?
• what resolution? Signed or unsigned?

and that without HW-Context 😱

• Do we even have 3 ADCs?
• What type of ADC? SFRs can be different
• you get it...
• I forgot
  3 ADCs, 2 Copys, 3 Resolutions, 2 signed/unsigned, 3 ICs
  = 108 possibilities

Why should we use policies?

• slogan: divide and conquer
• simplifies complexity
  similar to playing with brickstones
• better encapsulation of functions
• generic programming = easier reusing

todays Talk?

• Meeting Embedded 2019: Daniel Penning
  - Generic programming for the masses

lets close the circle!

Why?

• nice, but simple
• we talked about ...
• ... compiletime-evaluation
• ... configurations, known at compiletime
• ... compiletime-combination of Behaviour-implementation
• Could we evaluate our complete Firmware at compiletime?
• Could we do more?

USB Descriptors

USB Descriptors

USB Descriptors

USB Descriptors

USB Descriptors

USB Descriptors

USB Descriptors

USB Descriptors

USB Descriptors

USB Descriptors

really really bad....

												0x09,   /* bLength: Configuation Descriptor size */
												USB_DESC_TYPE_OTHER_SPEED_CONFIGURATION,
												USB_CDC_CONFIG_DESC_SIZ,
												0x00,
												0x02,   /* bNumInterfaces: 2 interfaces */
												0x01,   /* bConfigurationValue: */
												0x04,   /* iConfiguration: */
												0xC0,   /* bmAttributes: */
												0x32,   /* MaxPower 100 mA */

												/*Interface Descriptor */
												0x09,   /* bLength: Interface Descriptor size */
												USB_DESC_TYPE_INTERFACE,  /* bDescriptorType: Interface */
												/* Interface descriptor type */
												0x00,   /* bInterfaceNumber: Number of Interface */
												0x00,   /* bAlternateSetting: Alternate setting */
												0x01,   /* bNumEndpoints: One endpoints used */
												0x02,   /* bInterfaceClass: Communication Interface Class */
												0x02,   /* bInterfaceSubClass: Abstract Control Model */
												0x01,   /* bInterfaceProtocol: Common AT commands */
												0x00,   /* iInterface: */

												/*Header Functional Descriptor*/
												0x05,   /* bLength: Endpoint Descriptor size */
												0x24,   /* bDescriptorType: CS_INTERFACE */
												0x00,   /* bDescriptorSubtype: Header Func Desc */
												0x10,   /* bcdCDC: spec release number */
												0x01,

												/*Call Management Functional Descriptor*/
												0x05,   /* bFunctionLength */
												0x24,   /* bDescriptorType: CS_INTERFACE */
												0x01,   /* bDescriptorSubtype: Call Management Func Desc */
												0x00,   /* bmCapabilities: D0+D1 */
												0x01,   /* bDataInterface: 1 */

												/*ACM Functional Descriptor*/
												0x04,   /* bFunctionLength */
												0x24,   /* bDescriptorType: CS_INTERFACE */
												0x02,   /* bDescriptorSubtype: Abstract Control Management desc */
												0x02,   /* bmCapabilities */

												/*Union Functional Descriptor*/
												0x05,   /* bFunctionLength */
												0x24,   /* bDescriptorType: CS_INTERFACE */
												0x06,   /* bDescriptorSubtype: Union func desc */
												0x00,   /* bMasterInterface: Communication class interface */
												0x01,   /* bSlaveInterface0: Data Class Interface */

												/*Endpoint 2 Descriptor*/
												0x07,                           /* bLength: Endpoint Descriptor size */
												USB_DESC_TYPE_ENDPOINT      ,   /* bDescriptorType: Endpoint */
												CDC_CMD_EP,                     /* bEndpointAddress */
												0x03,                           /* bmAttributes: Interrupt */
												LOBYTE(CDC_CMD_PACKET_SIZE),     /* wMaxPacketSize: */
												HIBYTE(CDC_CMD_PACKET_SIZE),
												0xFF,                           /* bInterval: */

												/*---------------------------------------------------------------------------*/

												/*Data class interface descriptor*/
												0x09,   /* bLength: Endpoint Descriptor size */
												USB_DESC_TYPE_INTERFACE,  /* bDescriptorType: */
												0x01,   /* bInterfaceNumber: Number of Interface */
												0x00,   /* bAlternateSetting: Alternate setting */
												0x02,   /* bNumEndpoints: Two endpoints used */
												0x0A,   /* bInterfaceClass: CDC */
												0x00,   /* bInterfaceSubClass: */
												0x00,   /* bInterfaceProtocol: */
												0x00,   /* iInterface: */

												/*Endpoint OUT Descriptor*/
												0x07,   /* bLength: Endpoint Descriptor size */
												USB_DESC_TYPE_ENDPOINT,      /* bDescriptorType: Endpoint */
												CDC_OUT_EP,                        /* bEndpointAddress */
												0x02,                              /* bmAttributes: Bulk */
												0x40,                              /* wMaxPacketSize: */
												0x00,
												0x00,                              /* bInterval: ignore for Bulk transfer */

												/*Endpoint IN Descriptor*/
												0x07,   /* bLength: Endpoint Descriptor size */
												USB_DESC_TYPE_ENDPOINT,     /* bDescriptorType: Endpoint */
												CDC_IN_EP,                        /* bEndpointAddress */
												0x02,                             /* bmAttributes: Bulk */
												0x40,                             /* wMaxPacketSize: */
												0x00,
												0x00                              /* bInterval */
											  };


namespace hw {
	struct stm32f723k_hs {
		static constexpr uint8_t usb_high = 02;
		static constexpr uint8_t usb_low = 01;
		static constexpr uint8_t maxpacketsize = 64;
	};
}

device based on HW

enum descriptor_type_t : uint8_t {
null = 0x00,
device = 0x01,
configuration = 0x02,
string = 0x03,
interface = 0x04,
endpoint = 0x05
};

device based on HW

template<typename HW_t, int _Vendor_t = 0x4242, int _Product_t = 0x4242>
struct device_desc_t {
	uint8_t size = sizeof(*this);
	descriptor_type_t descriptor_type = device;
	uint8_t usb_high = HW_t::usb_high;
	uint8_t usb_low = HW_t::usb_low;
	class_t uclass = class_t::class_by_interface;
	subclass_t subclass = subclass_t::subclass_by_interface;
	protocol_t protocol = protocol_t::bla;
	uint8_t maxpacketsize = HW_t::maxpacketsize;

But what if i want something more complex?

• external configfiles?
• XML, JSON, INI?
• why not?

file to array

cat test.json
{
    "meetingembedded" : 2019
}

xxd -i test.json | \
> sed 's/unsigned char/constexpr uint8_t/' |\
> sed 's/unsigned int/constexpr size_t/'

constexpr uint8_t test_json[] = {
  0x7b, 0x0d, 0x0a, 0x20, 0x20, 0x20, 0x20, 0x22, 0x6d, 0x65, 0x65, 0x74,
  0x69, 0x6e, 0x67, 0x65, 0x6d, 0x62, 0x65, 0x64, 0x64, 0x65, 0x64, 0x22,
  0x20, 0x3a, 0x20, 0x32, 0x30, 0x31, 0x39, 0x0d, 0x0a, 0x7d
};
constexpr size_t test_json_len = 34;

In other words

We have & know (almost) everything at compiletime

and can do almost everything
